Creating New Projects

When you create a new project, you can select a template or just create a blank project.

To create a new project:

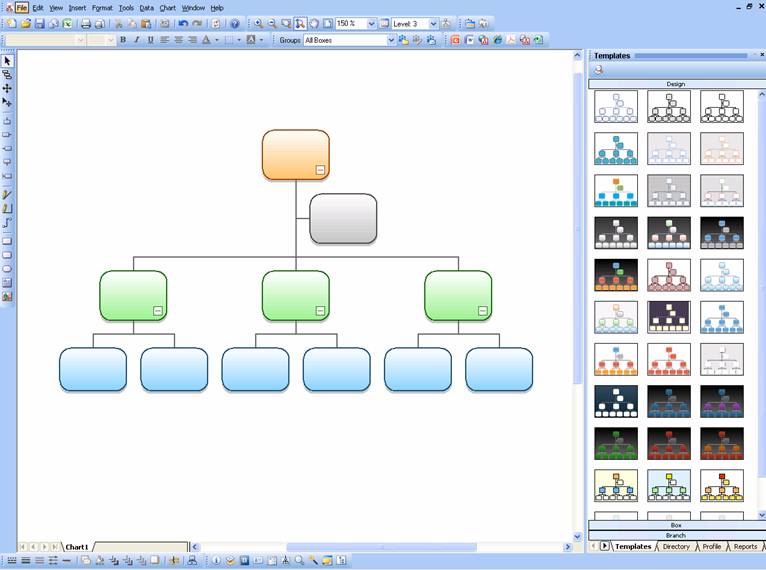

1       Choose New from the File menu to open the New Project dialog box. This creates a blank chart with three levels.

Click to enlarge

Or

To create a new project/chart with no hierarchical structure, click the New Org Chart button. Use this button to add charts to a new or existing project.

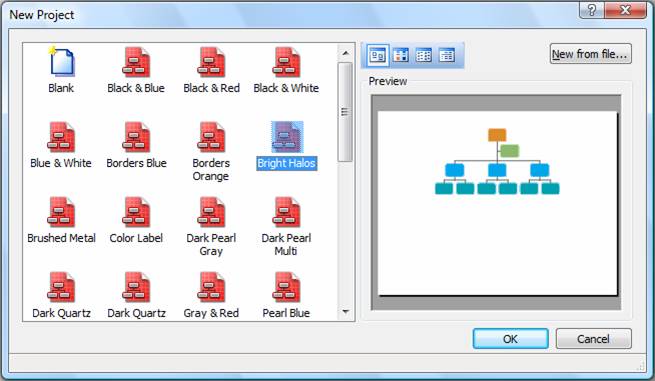

2        Choose a template. The Preview pane of the dialog box displays an example of the selected template.

Note: Click the New from file button in the New Project dialog box to use an existing file (and format) or template for the new project.

3        Click OK to create a new project using the selected template or file.

Click to enlarge
