OrgPlus automatically positions chart boxes based on the selected branch style. From time to time, automatic positioning of chart boxes may not meet your charting requirements. The Free-Form tool allows you to arbitrarily position boxes within your chart.
To use the Free-Form tool:
1 Select the Free Form tool .

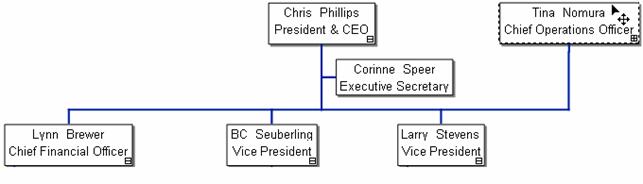

2 Click and drag any chart box to a new location.
To force a box to be horizontal or vertical constrained, hold down Shift while dragging the box.
3 To control a box’s connection to the chart, right-click a box and select an option from the Connect menu item:
See examples of these options in the table below.
Top: |
|
Left: |
|
Bottom: |
|
Right: |
4 Optionally, you can flip the connecting lines. Right-click a box and select the Flip Connecting Lines menu item.

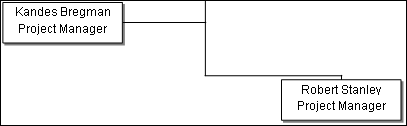

Before Flip

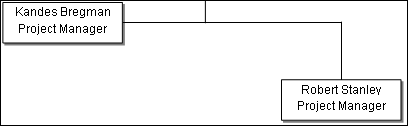

After Flip
5 Make sure to click the Select tool to exit Free-Form mode.
Note: To return a box to its original position right-click that box and select Snap to Chart.
