Adding Headers and Footers

You can enter free-floating text either in the header/footer area of a page or anywhere on the page using a text-box. Normally headers and footers are added to the Master Page.

To modify headers and footers:

1        With your chart open, select Master Page from the View menu.

2        Select Show | Page Lines from the View menu if the header and footer areas are not already visible.

3        Click in the header or footer area and enter a title for your chart.

Click to enlarge

4        Apply formatting to the text as required using the standard Font Properties dialog box, for example, Arial 24 Bold font and Purple color.

Click to enlarge

5        To enter text elsewhere, select Text Box from the Insert menu and click anywhere in the page. A text box is displayed in which you can enter text.

6        Select Normal from the View menu when you are finished working with the Master Page.

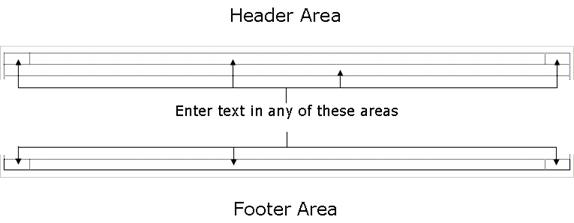

Note: The following diagram shows the four header and three footer areas in which you can enter text. 0

Click to enlarge
