Changing Object Order

The relative order of free-floating objects in your chart can be changed. The process is similar to changing the order of objects in PowerPoint.

To change the relative order of free floating objects:

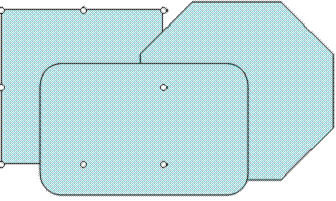

1        Select the object whose order you want to change relative to other objects. For example, in the following diagram the Square is selected.

Click to enlarge

2        Select Order from the Format menu. 0

Select from the following options:

Bring to Front: Moves the selected object to the front.

Send to Back: Moves the selected object to the back.

Bring Forward: Moves the selected object one level forward.

Send Backwards: Moves the selected object one level back.

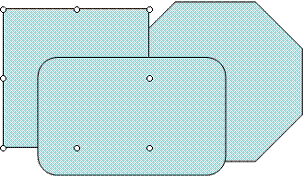

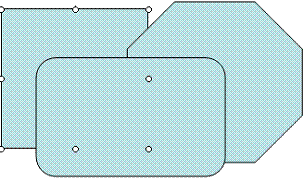

In the following example the square is moved one level forward using the Bring Forward option.

Click to enlarge

à

Click to enlarge
