Modified Co-Manager Style

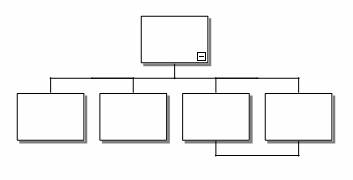

Sometimes it is desirable to have all second-level managers, including co-managers, lined up as follows:

Click to enlarge

To line up co-managers and managers:

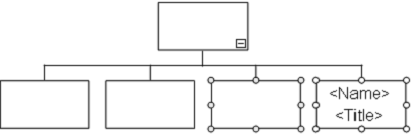

1        Select the boxes that you want to make co-managers.

Click to enlarge

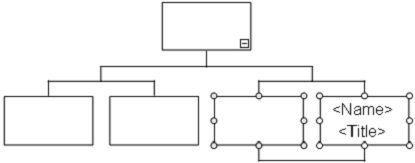

2        Select Chart Styles from the Format menu, and select the Co-Manager Style  option. The selected boxes are now represented as co-managers.

Click to enlarge

3        Select all four subordinates and the manager.

Click to enlarge

4        Select Spacing from the Format menu and set the Manager spacing distance to 0.00.

Click to enlarge
