Searching Charts

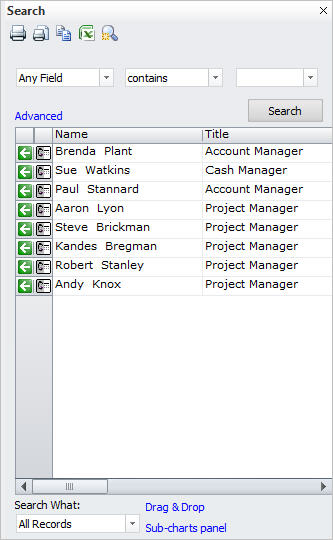

The Search panel allows you to search charts for all records that meet a set of criteria. This topic describes how to open the Search panel and what features are available.

Click to enlarge

See:

Using the Search Panel

Managing Search Results

Orphan Management



To open the Search panel:

ยท  Click the View tab and select Search. The Search panel opens, with a link to define Search results.

The Search panel has the following elements:

Element

Name

Description

Print Search Results

Print results from the current search.

Print Preview

Preview how the current search results will look when printed.

Copy Search Results

Copy search results to the Clipboard.

Send Search Results to Excel

Export the current search results to an Excel spreadsheet.

Modify Search Panel

Define which fields are returned after a search and change the formatting parameters used to display search results

Locate field

Selects the box in the chart corresponding to the selected search result.
